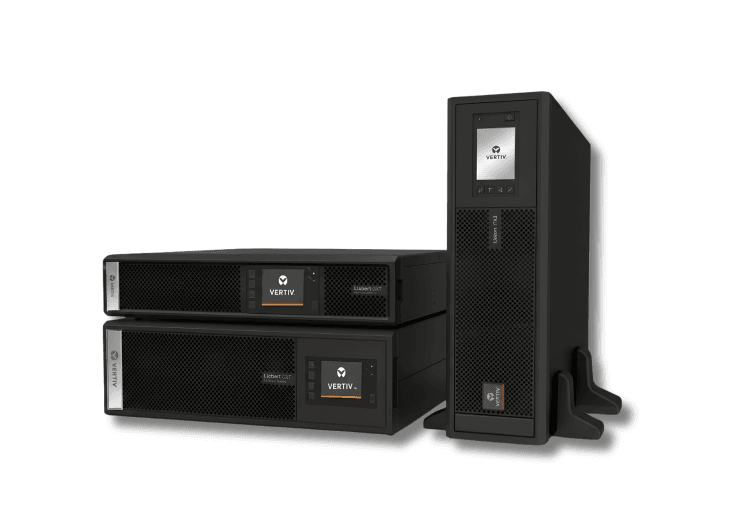

Liebert ITA2 UPS

Vertiv™ Liebert® ITA2 is a fully digital, online double-conversion UPS in a compact rack/tower package. It delivers clean, consistent power for edge networks, IT racks, network closets, automation and small control rooms.

Key Features

• Online double conversion - unity PF (5–20 kVA) · 0.9 PF (30–40 kVA)
• Up to 96.5% double conversion efficiency · up to 99% ECO mode
• Rack-tower convertible design
• Wide input voltage window to prolong battery life
• 0.99 input power factor
• 5–6 kVA: 1-phase · 10–20 kVA: 1Ph or 3Ph · 30–40 kVA: 3-phase
• Optional POD bypass and battery modules (5–20 kVA)
• Dust-resistant design · up to 50°C (derating applies)

Applications

• Edge networks and network closets
• Server rooms and small data centres
• Automation and precision instruments
• Telecom and branch offices

Technical Overview

Type	Online double conversion UPS (rack/tower)
Ratings	5 / 6 / 10 / 16 / 20 / 30 / 40 kVA
Power factor	Unity (5–20 kVA) · 0.9 (30–40 kVA)
Frequency	50 / 60 Hz
Online efficiency	Up to 95.5% – 96.5% (model-dependent)
ECO mode	Up to 99% (5–20) · up to 98.5% (30–40)
Classification	VFI-SS-111 (IEC 62040-3)

Type Overview

Model	kVA / kW	Input	Output	W × D × H (mm)	Weight (kg)	Online eff.
ITA2 5 kVA	5 / 5	220/230/240 V 1Ph	220/230/240 V 1Ph	430 × 450 × 85	11	Up to 95.5%

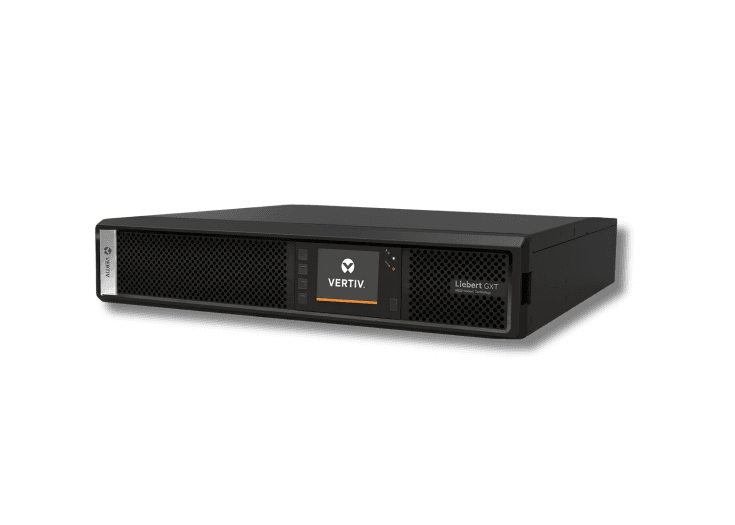

ITA2 6 kVA	6 / 6	220/230/240 V 1Ph	220/230/240 V 1Ph	430 × 560 × 85	15	Up to 95.8%
ITA2 10 kVA	10 / 10	1Ph or 380/400/415 V 3Ph	1Ph or 3Ph	430 × 570 × 130	23	Up to 96.2%

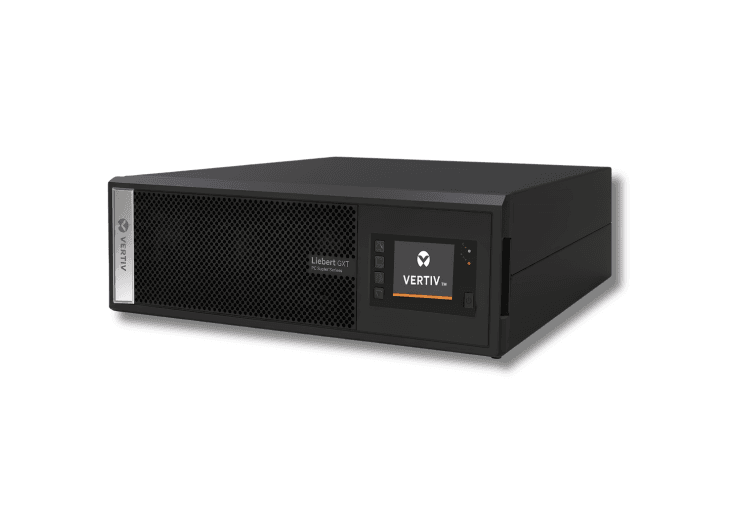

ITA2 16 kVA	16 / 16	1Ph or 380/400/415 V 3Ph	1Ph or 3Ph	430 × 570 × 130	23	Up to 96.5%
ITA2 20 kVA	20 / 20	1Ph or 380/400/415 V 3Ph	1Ph or 3Ph	430 × 570 × 130	23.5	Up to 96.5%

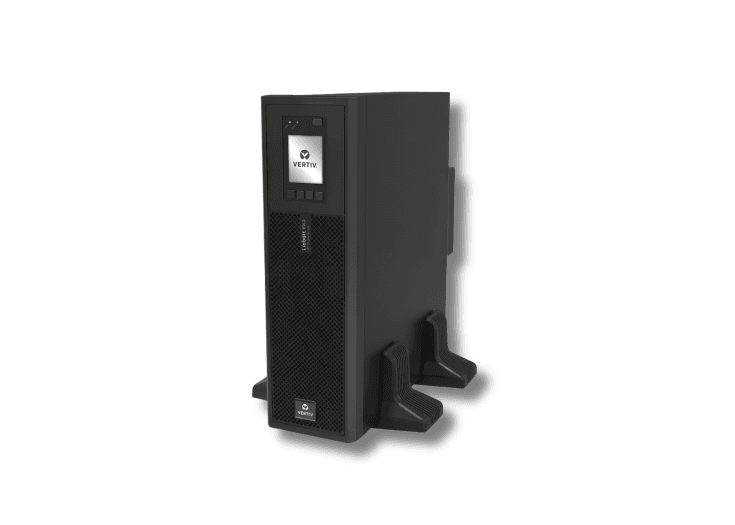

ITA2 30 kVA	30 / 27	380/400/415 V 3Ph	380/400/415 V 3Ph	435 × 800 × 173	72	Up to 95%
ITA2 40 kVA	40 / 36	380/400/415 V 3Ph	380/400/415 V 3Ph	435 × 800 × 173	72	Up to 95%

Rack-mounted W × D × H. Source: Vertiv Liebert ITA2 India brochure.
