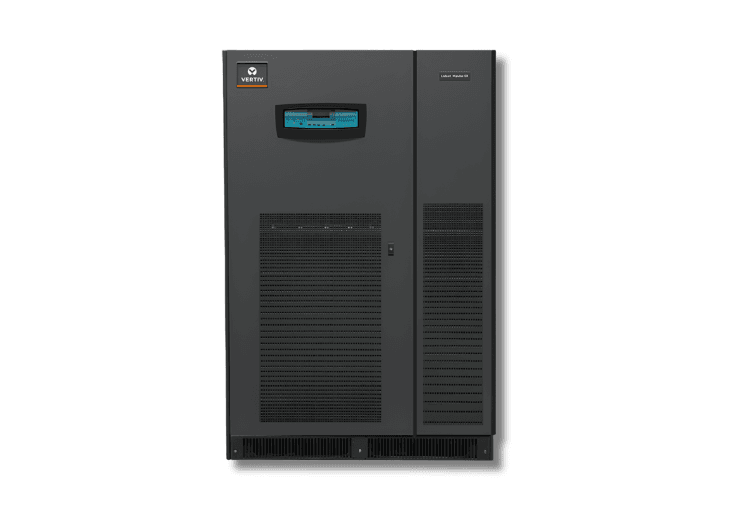

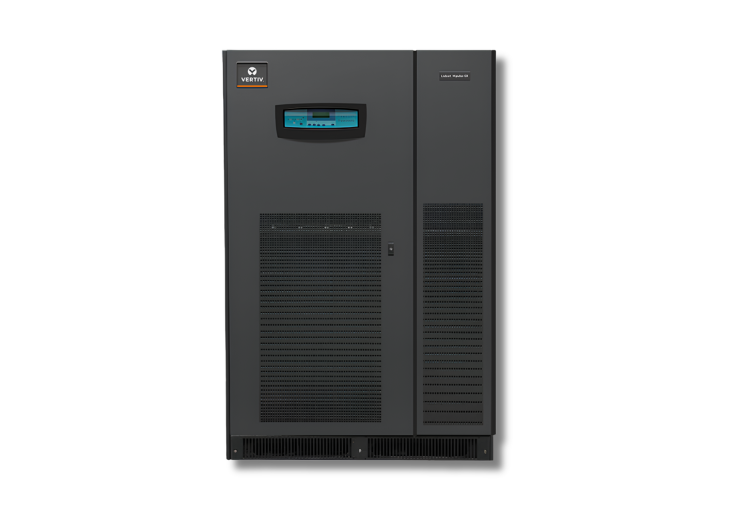

80 kVAHipulse-EX 80 kVA
- Input
- 380 / 400 / 415 V 3Ph+N
- Output
- 380 / 400 / 415 V 3Ph+N
Full specsDetails
Loading
Loading

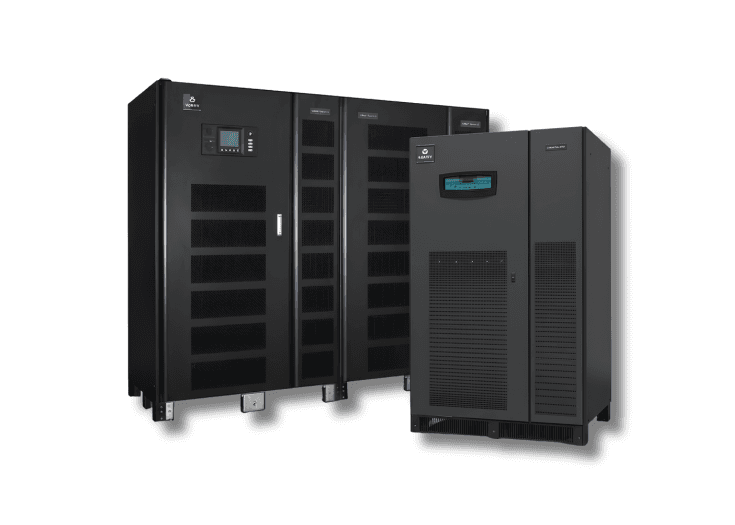

Vertiv · Series
Online double-conversion UPS (80–200 kVA) with 0.8 output PF, parallel up to 6 modules, built-in maintenance bypass, and strong overload capability for critical loads.
80 kVA · 120 kVA · 200 kVA
Range
USA
Origin
3
Models
Configurations
3 configurations
Overview
Vertiv™ Liebert® Hipulse-EX is designed to maximize availability of critical loads and protect your business against power failure and power-quality problems. It addresses reliability, scalability, redundancy, maintainability, parallelability and connectivity with a compact footprint and lower cost of ownership.
| Type | Online double conversion UPS |
| Capacity range | 80 / 120 / 160 / 200 kVA |
| Output power factor | 0.8 |
| Input / output voltage | 380 / 400 / 415 V 3Ph+N |
| Input voltage range | −15% / +10% (typ.) |
| Parallel | Up to 6 modules (1+N) |
| Model | kVA | kW (@ 0.8 PF) | W × D × H (mm) | Weight (kg) |
|---|---|---|---|---|
| Hipulse-EX 80 | 80 | 64 | 900 × 875 × 1900 | 750 |

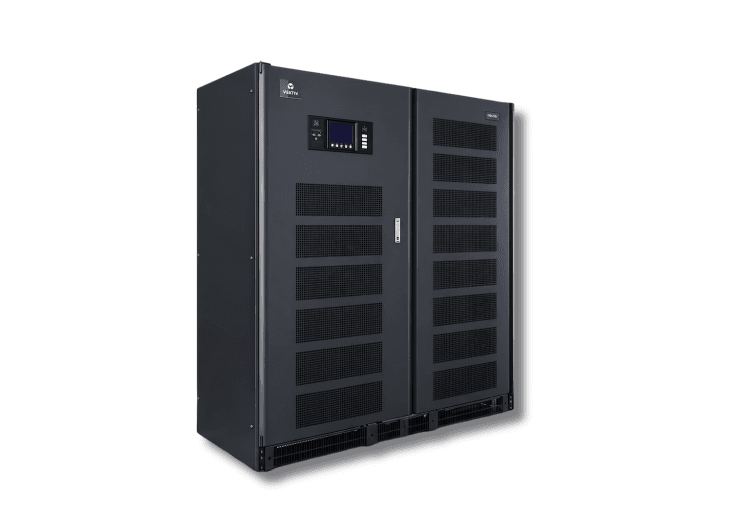

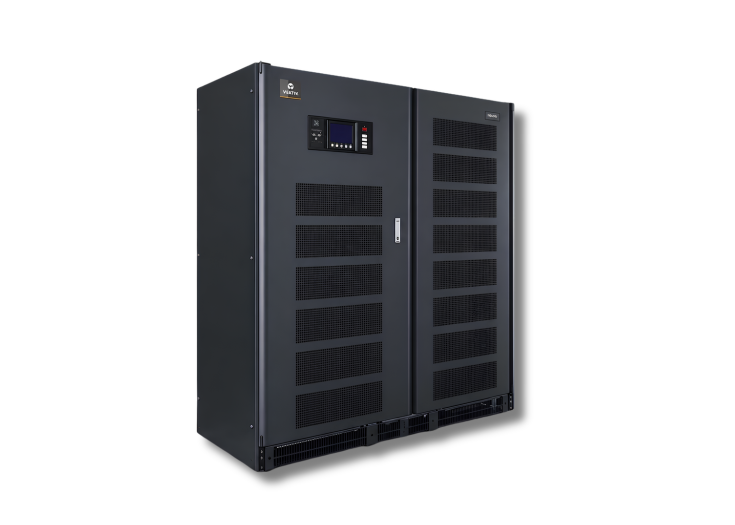

| Hipulse-EX 120 | 120 | 96 | 1250 × 875 × 1900 | 1000 |

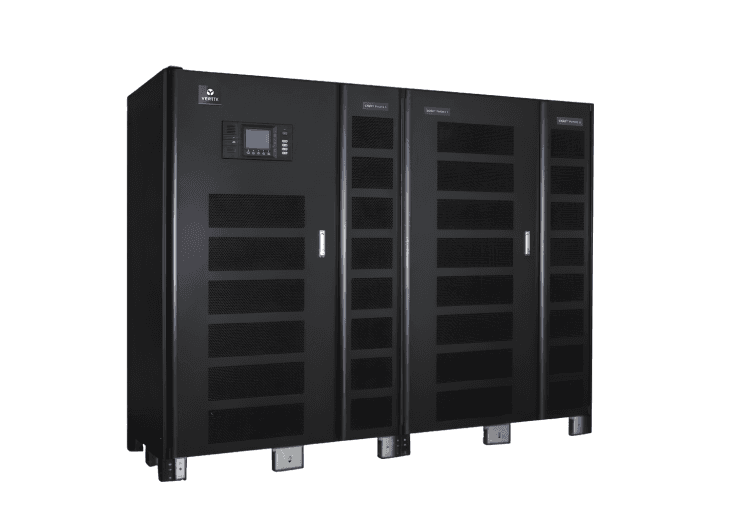

| Hipulse-EX 200 | 200 | 160 | 1250 × 875 × 1900 | 2000 |
Same brand

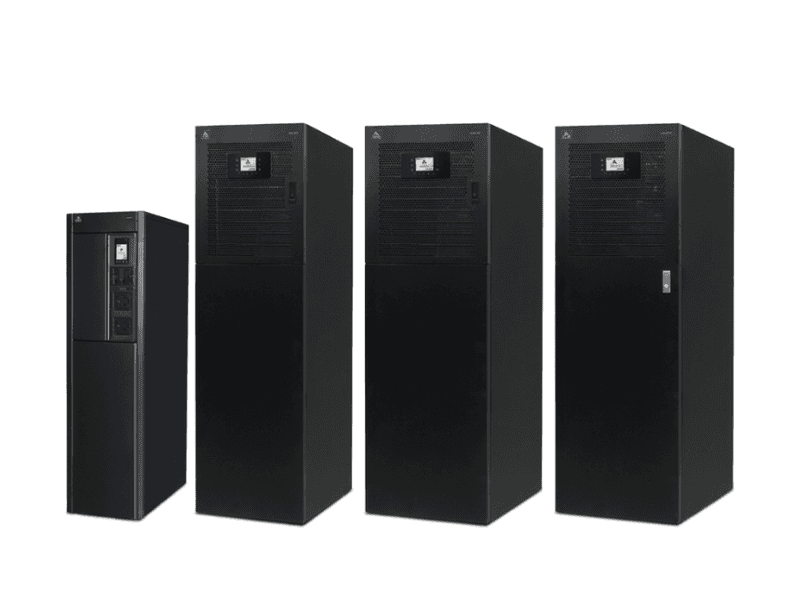

Vertiv Liebert EXS 10-80kVA is a high-efficiency online double conversion UPS designed to provide reliable power protection for data centers, IT infrastructure, industrial applications, and critical equipment.

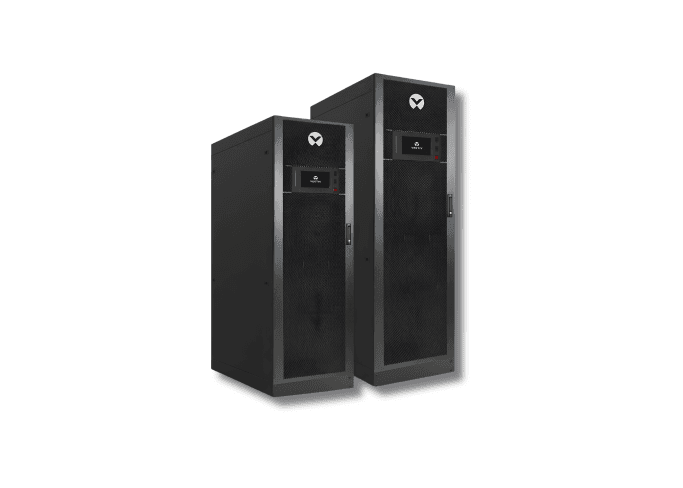

High-capacity modular 3-phase UPS for large data centres and AI-up to 99% Dynamic Online efficiency, unity power factor, scalable architecture.
