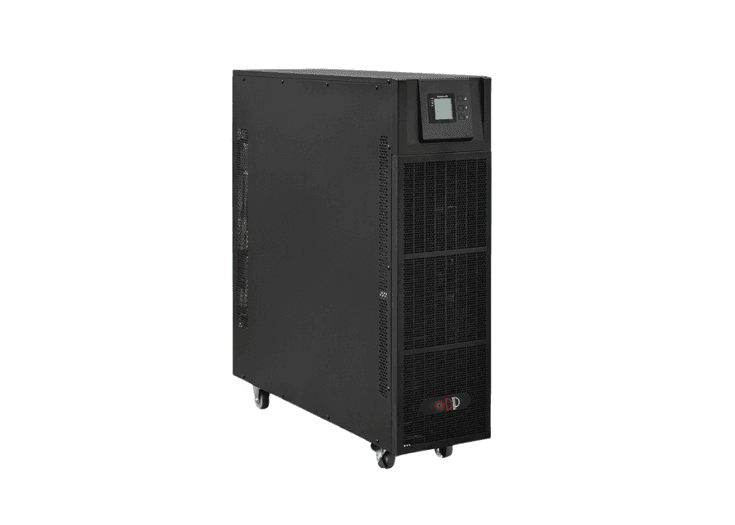

DIP · Model
3-phase online double-conversion UPS (10–200 kVA) with pure sine wave, 1 unity PF, wide input range, and parallel capability.
30 kVA
Power rating
DIP Three Phase UPS
Series
Input
380 / 400 / 415 V 3Ph+N+PE
Output
380 / 400 / 415 V 3Ph+N+PE
Height
655 mm
Width
250 mm
Depth
580 mm
Weight
43 kg
Technical data
Detailed metrics for this configuration within the DIP Three Phase UPS series.
| Model | Power Rating | Input Voltage | Output Voltage | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|
| DIP30KVA 3P | 30 kVA | 380 / 400 / 415 V 3Ph+N+PE | 380 / 400 / 415 V 3Ph+N+PE | 655 mm | 250 mm | 580 mm | 43 kg |
